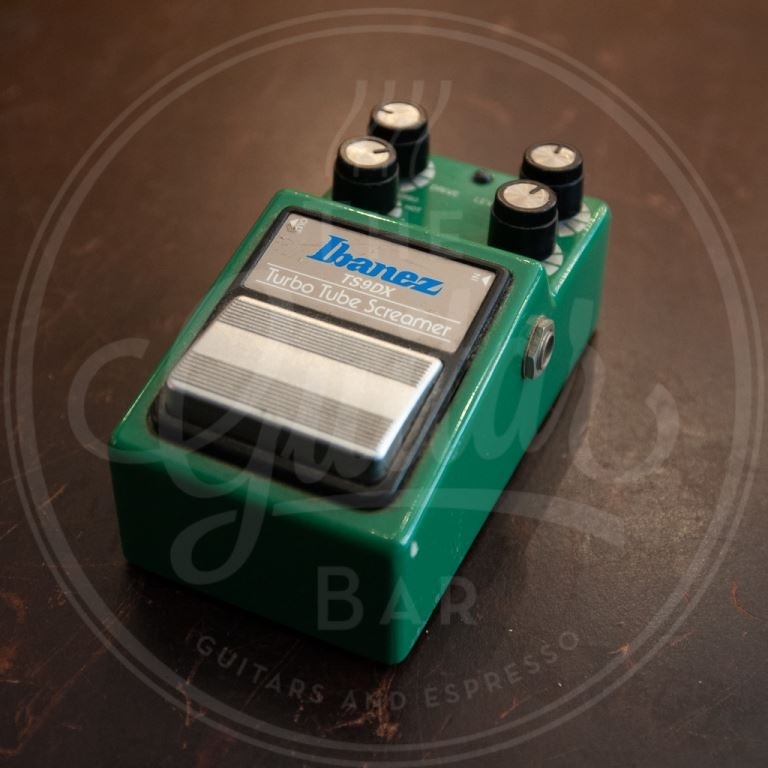

Ibanez Turbo Tubescreamer

97,50

USED – Local Pickup Only



Works great on bass guitar as well



This item can only be purchased in our physical store in Antwerp. You can now drop by without appointment. For questions contact us through our chat, email or phone.
SKU: 366 Categories: , , , Brand:


Description

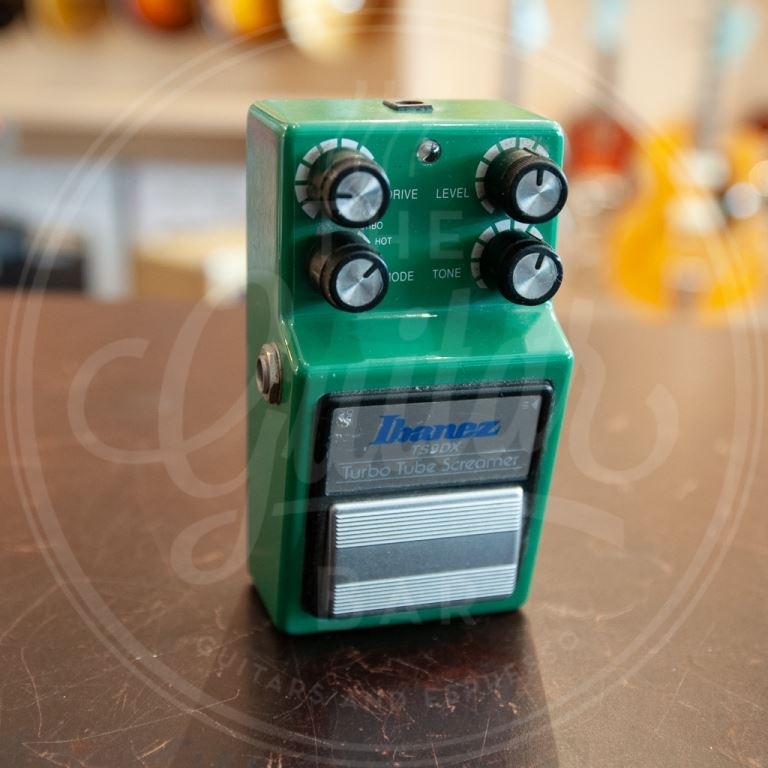

The TS9DX Turbo Tube Screamer was created in 1998 by John Lomas at Hoshino USA to meet Ibanez (Hoshino's) marketing request for a tube screamer with different modes for output and distortion. It has an additional knob along with the old Drive, Tone, and Level knobs. The new knob is a 4 position MODE switch. The TS9DX has the EXACT same circuit as the original TS-9, but the mode switch changes some of the parameters of certain components of the original circuit.



The changes in the circuit for the 4 modes are :



Clipping diodes : there are several sets of diodes on new boards mounted on the control knobs, that are switched by the MODE knob.

Tone Capacitor : There are several capacitors on these new mini boards which are also switched by the MODE knob.

The four modes are described by Ibanez as :



TS9 : The classic TS9, no modifications. Like a TS9/808 or an old TS-808



+ : Grittier, louder than the original TS9.



HOT : Crunchier tone with boosted mids, like a wall of 4 x 12s. More volume and more lowend



TURBO : Powerful, bottom thick sound, like todays modern/alternative guitarists like. More volume and bass.
