DUANE-JR handwired tube amplifier 5W class A


Handwired tube amplifier full 5W class A "Duane Jr" with a turret board hand-wired circuit with Orange Drop capacitors.


Now you will know where all the rock legends get their great sound from! Eric Clapton, Jeff Beck, Duane Allman, Billy Gibbons, all use or used these small amps with 5F1 tube circuits in the studio to get the best sound.

Only 1 left in stock

Free shipping from €75*
 Personal & flexible advice
In-house luthier

This pricing is with Belgium VAT rate (21%). Your country's VAT rate will be calculated in the shopping basket at checkout.

SKU: DUANE-JR Category: Brand:

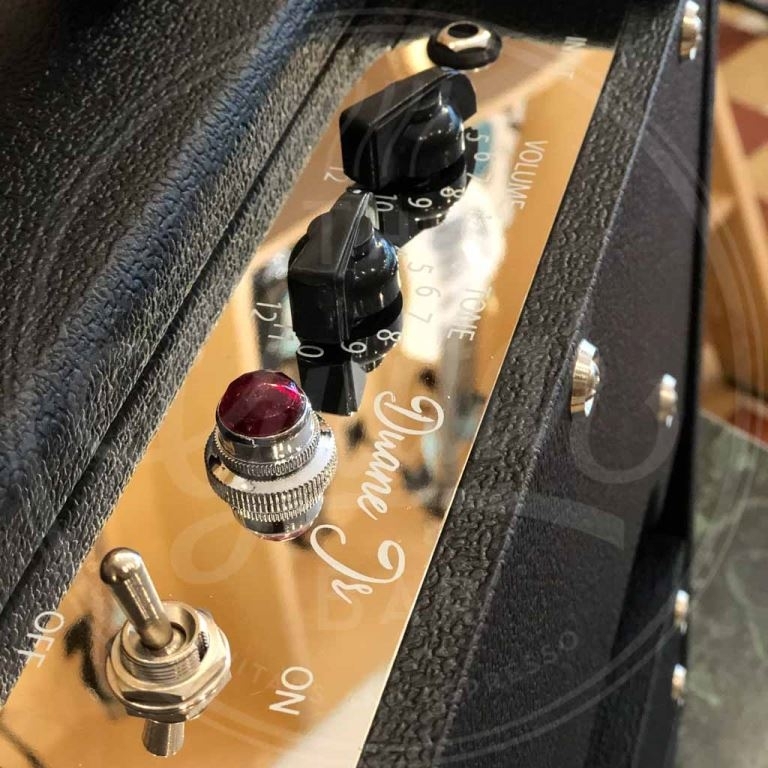

The all-tube Duane Jr. is the ideal studio amp. The handwired 5F1 tube circuit has been customised with a tone control to make the amp more versatile.

The tones you can get from your Duane Jr. are lively and direct with the tube-typical compression. Very inspiring!

Due to the low wattage of 5 watts, this amp can be turned all the way up to achieve the best power tube distortion available. The Duane Jr. even has a tube rectifier, giving you that natural compression that everybody loves. What you put in it, will come back to you. Working the volume and tone controls on your guitar will bring the best tones. The diminutive size is in contradiction to its tone. In recording situations, the Duane Jr. will get the best tones "on tape".



The Duane Jr. is a fantastic platform for effectpedals. The response is great and the original tube tone stands tall after all the alterations from your effectpedals. Standard fitted with a 12AX7 pre-amp tube, the Duane Jr. is most versatile when playing with different pre-amp tubes, like 12AT7, 12AU7 etc, Where the 12AX7 will yield distortion and fuzz-like tones at lower volume settings, the 12AT7, 12AY7 and 12AU7 tubes will all yield cleaner tones. All sounding very musical and letting you optimise your guitar-amp combination. You will notice that the Duane Jr. will become your favourite amp for studio and practise use.


Full tube amp with a turret board hand-wired circuit with Orange Drop capacitors.




Rectifier tube : 1 x 6Z4

Power tube : 1 x 6V6

Pre-amp tube : 1 x 12AX7

Output : 5 Watts

Speaker : 1 x 8" Celestion Eight 15

Width : 33 cm

Height : 34,8 cm

Depth : 19 cm

Weight : 8,7 kg
