Pedalboard power effect pedal power supply

170,00

Power Supply

Out of stock

Out of stock

SKU: DC5 link Category: Brand:


Description

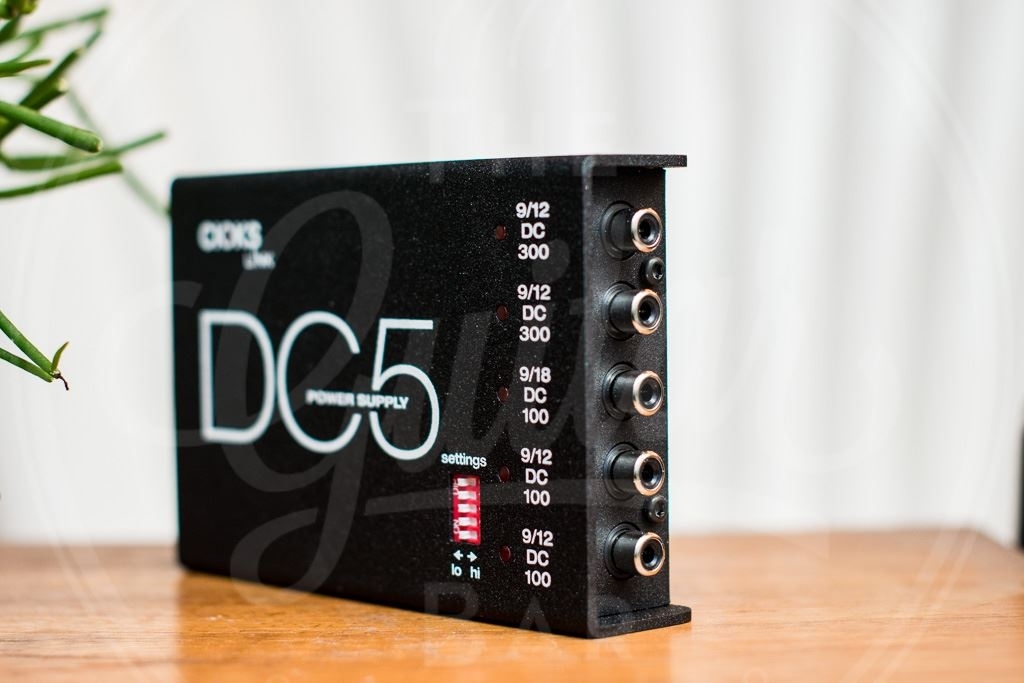

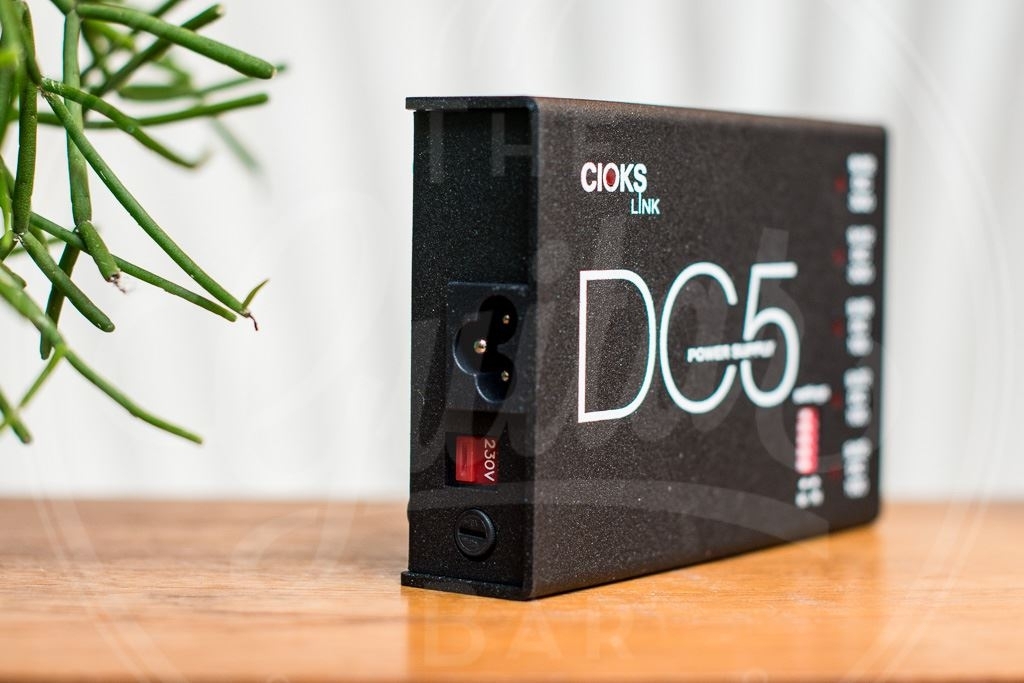

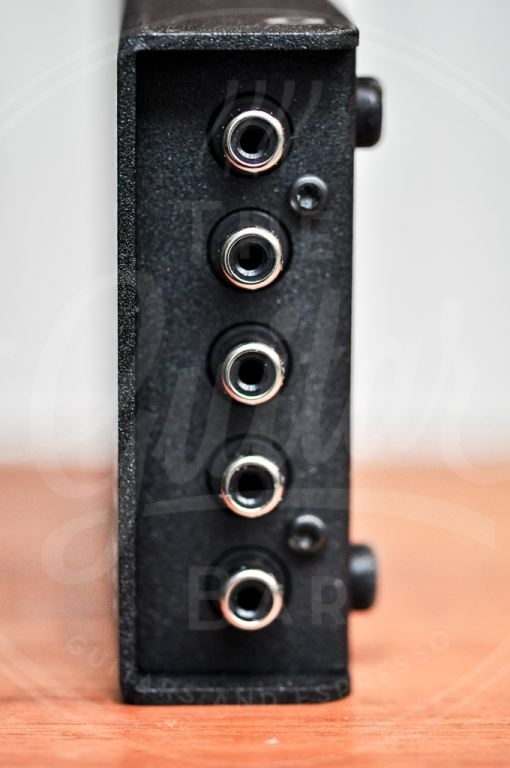

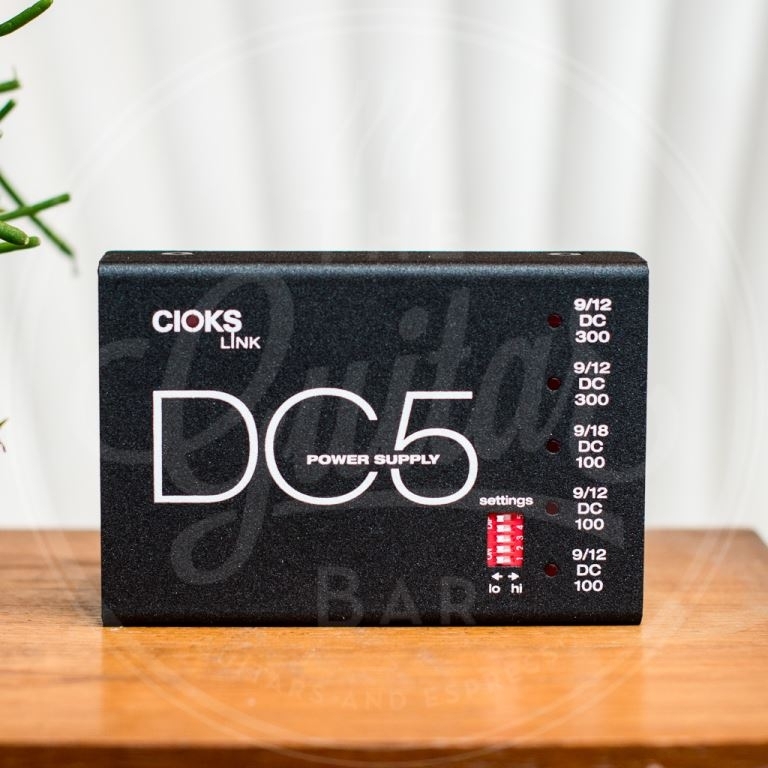

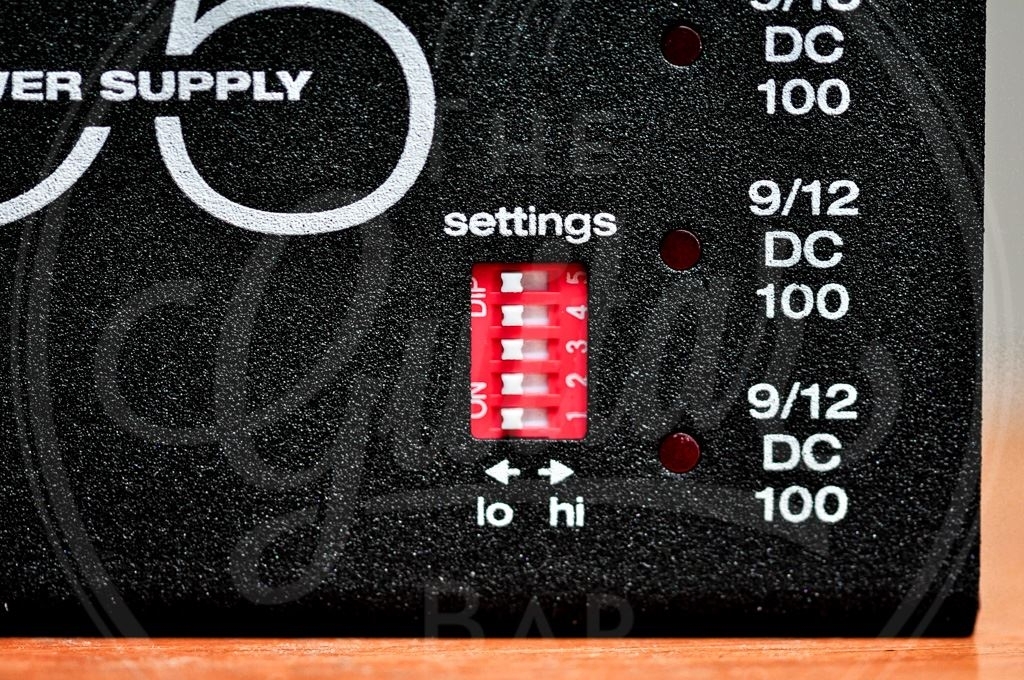

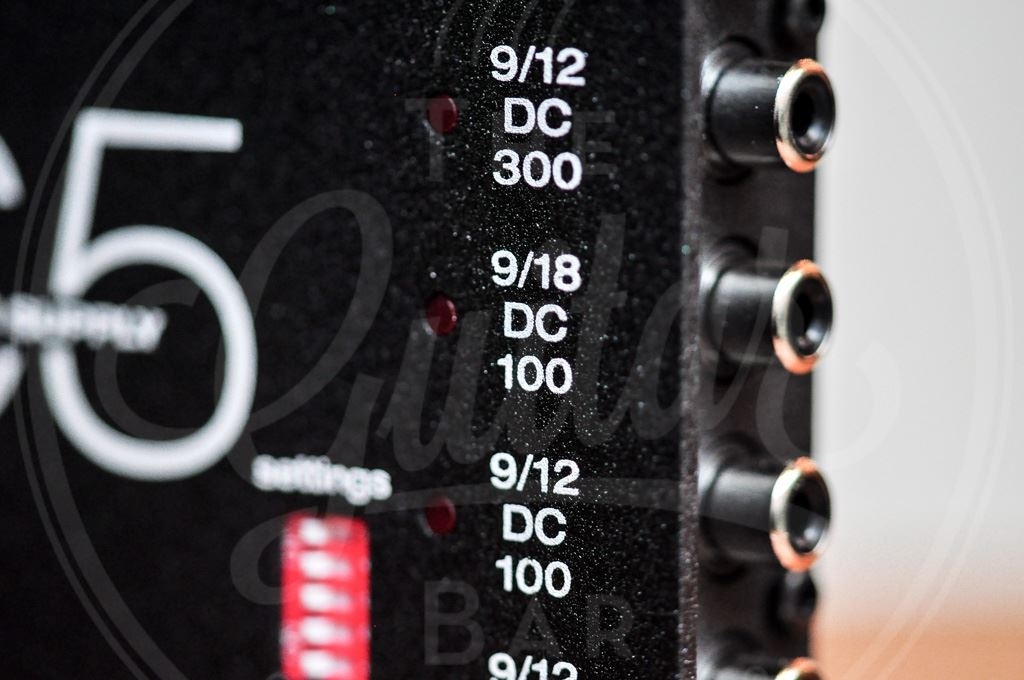

DC5 link is a professional, small and very flat power supply for effect pedals with 5 isolated outlets. Being only 31mm high, it fits under the smallest Pedaltrain board models PT-nano or PT-mini. It offers voltages 9, 12 or 18V and has a total output current of 900mA. The top two switchable 9 or 12V outlets can power any two Strymon, Eventide or other two medium to high current pedals. The middle outlet in 18V setting can power one or two dirt pedals, Pigtronix, MXR or other 18V pedals. The bottom two outlets configurable to either 9 or 12V can power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. In 12V setting using Stack Flex, they’ll power a 24V pedal. If needed, all 5 isolated outlets will give you 9V DC in the default position of the settings switch.
