Schertler A-SERIES magnetic pi

175,00

The compact pickup fits inside the guitar’s sound hole. It is equipped with volume control and external input (also with separate volume control) for connecting a second pickup.

Out of stock

Out of stock

SKU: M-AG6-BK Categories: , Brand:


Description

Schertler’s MAGNETICO AG6 pickup for acoustic guitar is the first model in a range of specially developed, affordable fretted instrument pickups that uniquely combine high-end Schertler electronics with active multiple coil technology. Benefits include a fast transient behaviour, flat frequency response and a full rich sound across the entire range of the instrument.

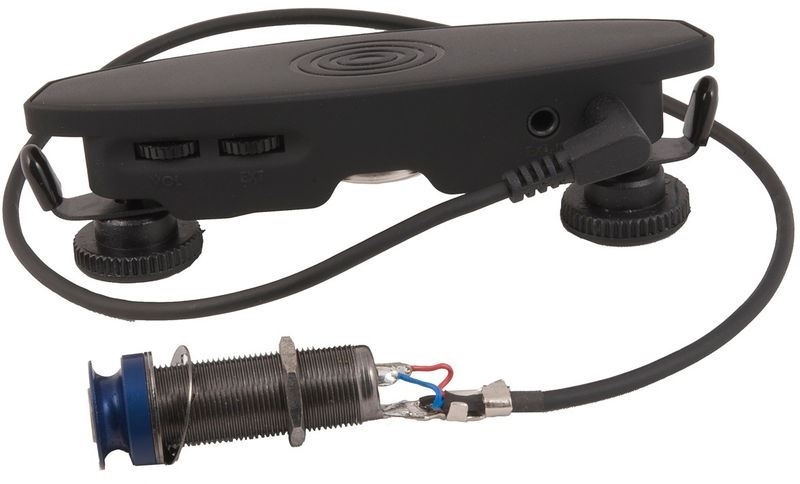

The compact pickup fits inside the guitar’s sound hole. It is equipped with volume control and external input (also with separate volume control) for connecting a second pickup. Sound from both pickups can be blended to create exactly the right effect for each individual performance or recording. The MAGNETICO AG6 is supplied with an internal Jack cable for fixed installation on the instrument. An external Jack cable is available separately.

Battery type Lithium 3V CR2032
Playing hours 120 hours
Current consumption 1.84 mA
Frequency range from 0 Hz to 40 kHz (+/- 3dB)
Dynamic range 68 dBSNR
Max output voltage 4 VPP
Output level -5 dBu / 1.23 VPP
Output impedance

5 kOhm
