DeLisle Pedal – Amp Speaker Selector 4X4 deluxe

655,00

The de Lisle Amp-Speaker 4×4 Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching and a bypassable attenuator loop.

Out of stock

Out of stock

SKU: Pedal - Amp Speaker Selector 4X4 deluxe Category: Brand:


Description

Plug in your guitar / pedalboard and send it to any of the 4 connected amps by rotating the Amplifier dial. The amp's output is then sent to the selected speaker cabinet. We've also included an attenuator loop that allows you to easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet.



The 4×4 Deluxe runs off a standard 2.1mm/5.5mm center negative 9V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at the input and switched to a protective load.

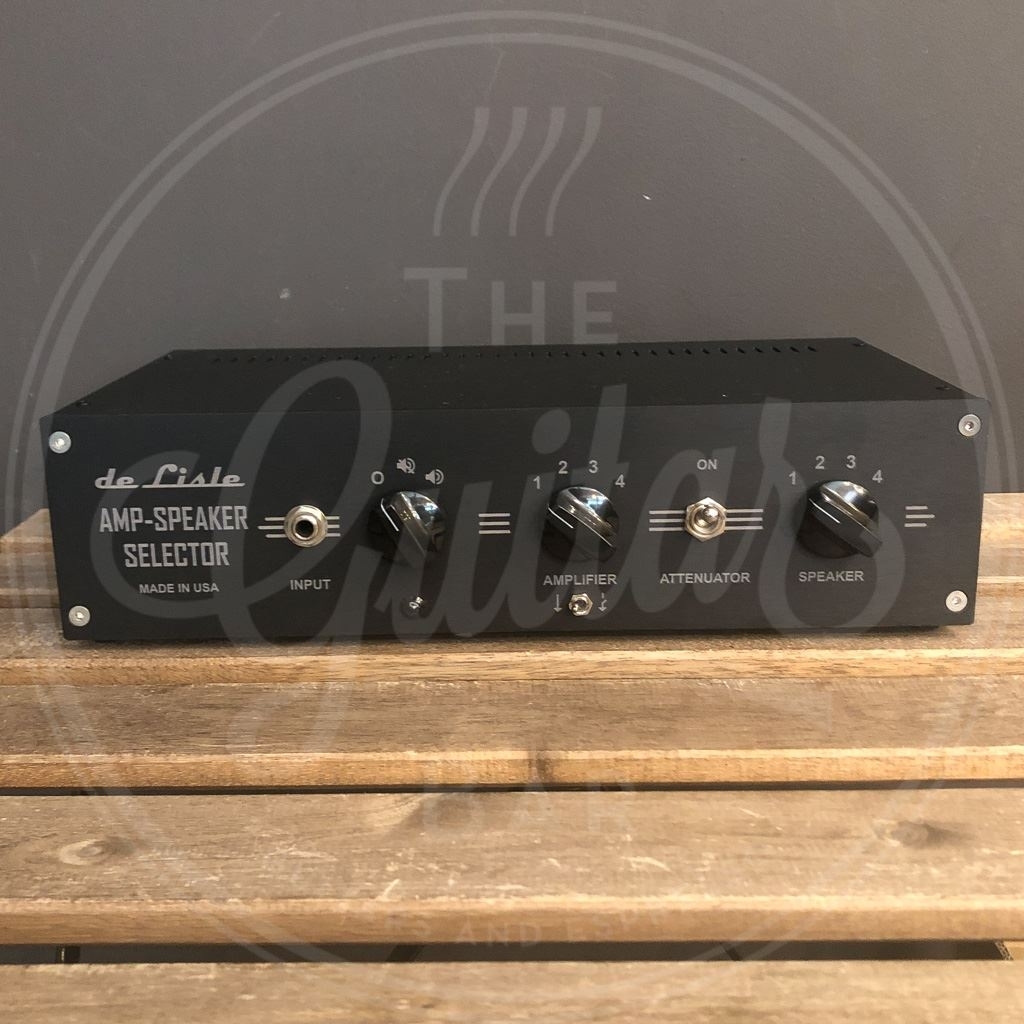

Desktop model shown. Rackmount enclosure available as an option.



New features for 2021 models:

Premium Enclosure with Laser Etched Aluminum Control Panels

Front Panel Off / Mute / On Switch

Front Panel Ground Switch

Heavy Duty Relays for Backend Switching

Power Supply Included
