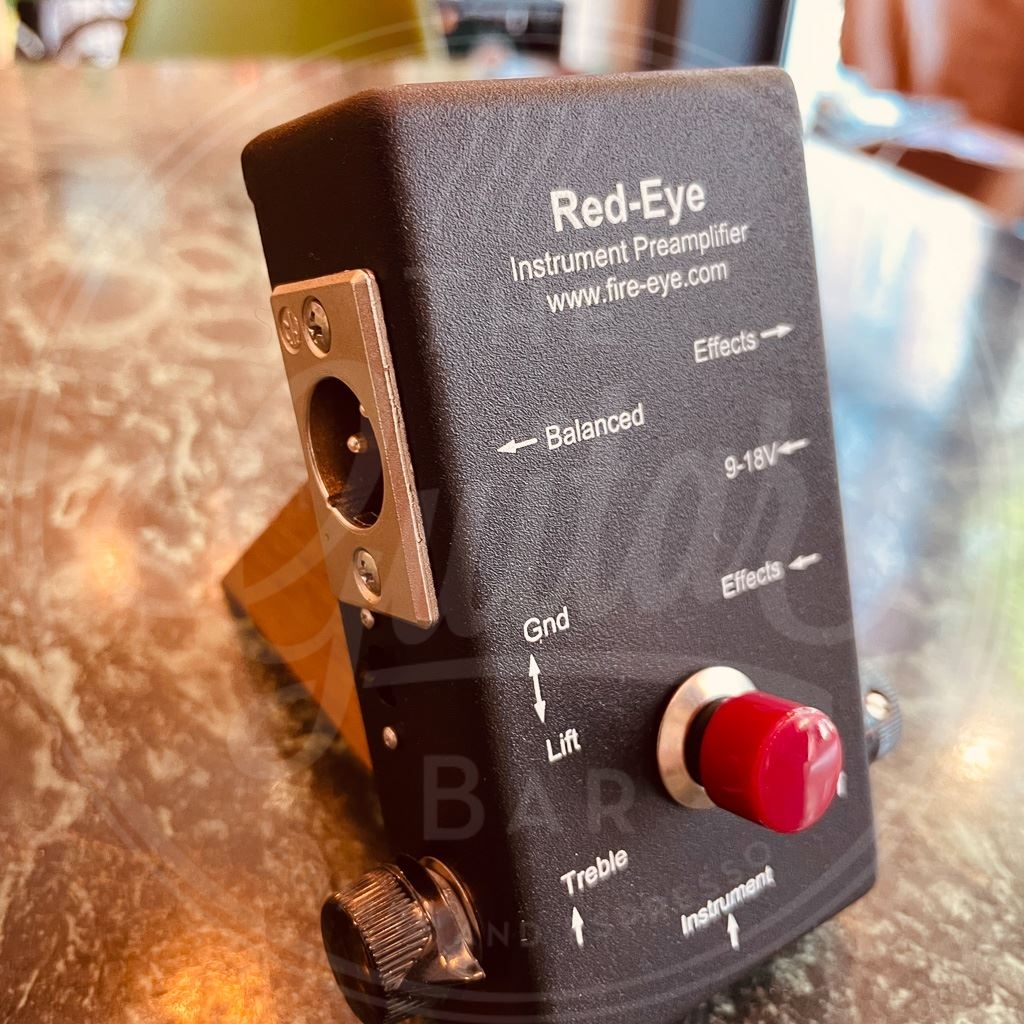

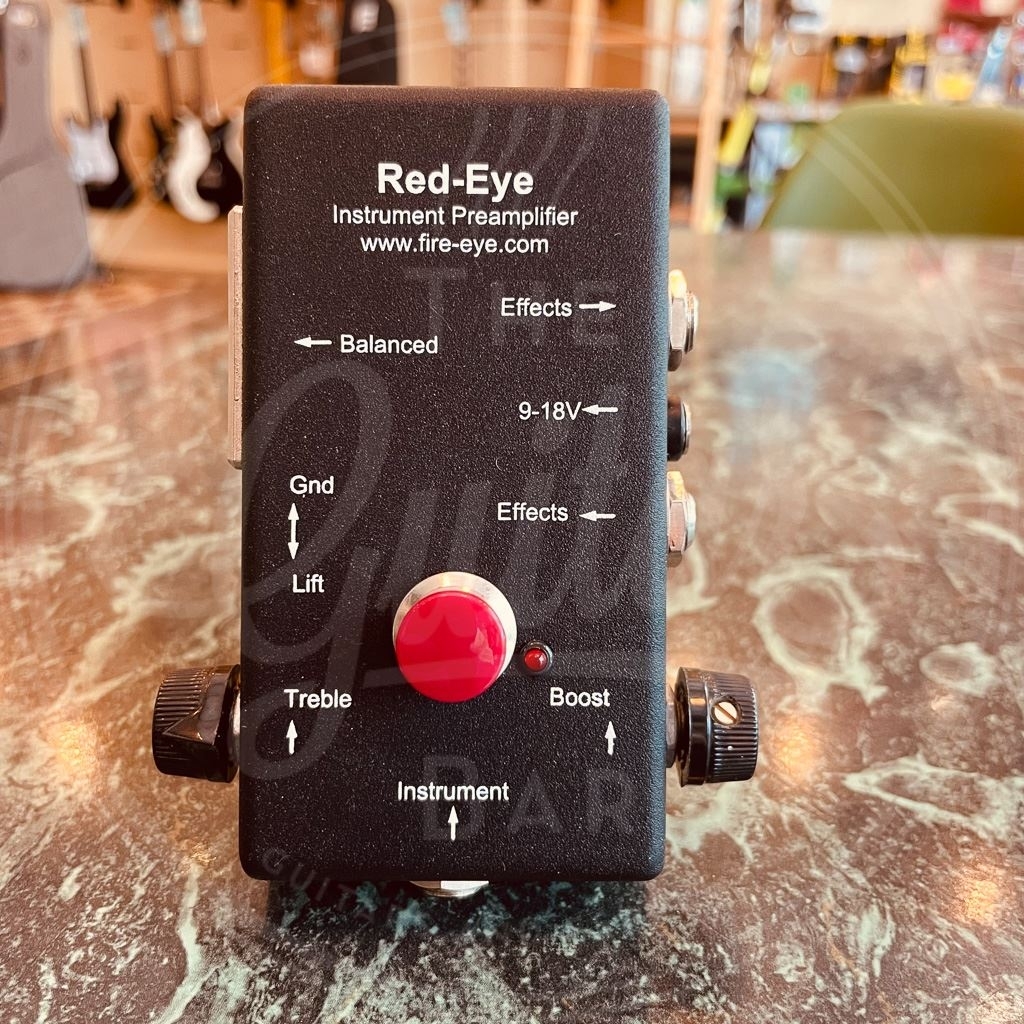

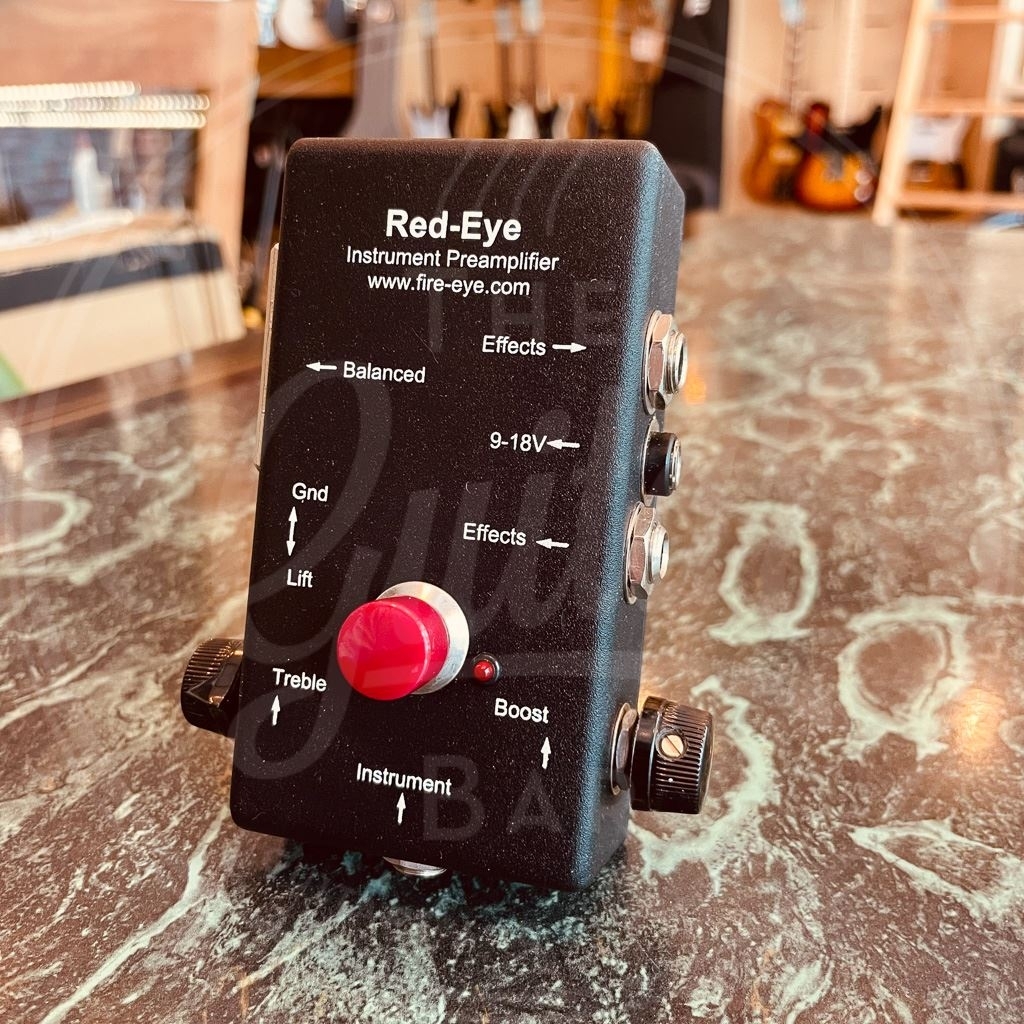

Fire-Eye Red-Eye 3 Instrument Preamp


Red-Eye Instrument PreamplifierTM


The Red-Eye Instrument Preamp offers a simple direct-connect solution for musicians playing instruments with high-impedance piezoelectric pickups. The Red-Eye Preamp works well with instruments having passive or active piezo pickups or those with magnetic pickups such as electric guitars and electric basses.

The Red-Eye Preamp’s impedance-matching field-effect transistor input circuit is designed especially to match and track the impedance of passive piezoelectric pickups. That results in a smooth, natural, balanced, acoustic instrument tone. Low distortion, low noise, and generous headroom mean that clear tone comes through even when an instrument is played percussively and loudly.



 Input: Impedance-matching, accepts up to 2 volt peak-to-peak level without distortion.

 Low-impedance, balanced, XLR output, 600 ohms with ground-lift switch,

 Boost button with volume control for amplifying solos.

 Treble control to boost or reduce treble. Response is flat when control is centered.

 Usually powered by 48-volt XLR phantom power but has an internal 9-volt battery and a 9

to 18-volt center-negative, center-ground, power jack as alternatives.

 Long 9-volt battery life (~200 hours). Battery is not used if other power is present.

 Plugging an instrument in or connecting external power turns the Red-Eye on.

 Pwr Chk Light illuminates for about a second if power is good when the preamp is

powered up. When powered up on the battery, the light will appear if the battery is in the

first ¾ of its life.

 ¼ inch output and input for effects accessory loop, suitable for stomp-tuners or effects

pedals or for output to on-stage guitar amps or PAs.

 Internal filtering to reject radio-frequency interference from neon lights and cell phones.

 Small Chassis Size: 1.25 x 2.25 x 4.25 inches. Weight: 10 ounces.
